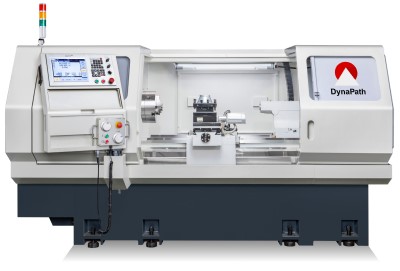

2+1 Axis Box Way Flat Bed Lathe for Job Shops, Tool Rooms, and Prototyping
The TF series flat bed type lathe machines are designed for versatility. The X and Z axes utilize precision ground box ways with precision ball screws. The spindle motor is housed in a rigid casing fixed to the frame for enhanced rigidity. A tailstock with quill allows set up for long cylindrical parts. An optional X-Axis secondary spindle offers mill-turn functionality. The machine is suitable for turning, grooving, drilling, facing, threading, tapping, keyway milling, face milling, and cylindrical milling of precision parts. For the operator, the versatile WinDelta control allows manual DRO, semi-automatic, and also fully automatic operation of the machine by running standard G-Code. Furthermore, Conversational Programming and DXF CAD capabilities enable the operator to program right at the machine.
DynaPath WinDelta CNC Control with:
- Color LCD Touch Screen
- Conversational Programming
- DXF Import
- Standard ISO G-Code support
Includes:
- Automatic Tool Post (4 tools)
- Auto Lubrication System
- Spindle C-Axis Mode
- Air Driven Hydraulic C-Axis Disc Brake
- 8” Manual Chuck
- Manual Tailstock with Quill
- Optional Secondary Spindle for Side or Front Face Mill, Drilll, Bore, and Tap.
- Full Enclosure with Coolant System and Chip Drawer
|
|
MACHINE SPECIFICATIONS
| MODEL |
TF-410 |
TF-480 |
SWING OVER BED |
410 mm (16.14") |
480 mm (18.89") |
SWING OVER CROSS SLIDE |
260 mm (10.23") |
|
DISTANCE BETWEEN CENTERS |
1050 mm (41.33") |
|
WIDTH OF BED |
400 mm (15.75") |
|
SPINDLE SPEED |
50 -3500 RPM (8” CHUCK) |
|
SPINDLE TAPER / BORE / NOSE |
MT6 / 54 mm (2.125") / A2-6 |
|
MOTOR RATING |
7.5 kW (10HP) |
SPINDLE RPM (2nd SPINDLE) |
10 -4000 RPM |
MOTOR RATING (2nd SPINDLE) |
1.0 kW, 3.18 N-m (2.35 ft-lb) |
CHUCK TYPE |
Manual 8", 3-Jaw |
|
| XZ TRAVEL |
230 x 820 mm (9.06” x 32.28”) |
250 x 1000 mm (9.84” x 39.37”)
|
| XZ RAPID RATES |
5 / 5 m/min (197 / 197 IPM) |
| XZ MAX TORQUE |
9 / 12 N-m (6.64 / 8.85 ft-lb) |
| ATC TYPE |
4-Tool Turret, 25mm Max tool Height |
| ATC DRIVE |
Electric |
| TAILSTOCK QUILL SIZE |
52 mm (2.17") / MT4 |
| TAILSTOCK QUILL TRAVEL |
150 mm (5.91") |
| TAILSTOCK QUILL |
Manual |
| REPEAT ACCURACY X/Z |
0.005 / 0.006 mm (0.00020" / 0.00024") |
| POSITIONING ACCURACY X/Z/C |
0.010 mm/0.016 mm/0.1Deg (0.00039"/ 0.00063") |
| TURNING ACCURACY |
0.003 mm (0.00012") |
| TURNING UNIFORMITY |
0.006 mm/100 mm (0.00024" / 3.94") |
| FLOOR SPACE |
265 x 160 x 165 cm (105" x 63" x 65") |
300 x 175 x 165 cm (119" x 69" x 65")
|
| TOTALWEIGHT |
2000 kg (4400 lbs) |
|
| AIR REQUIREMENTS |
6 kgf/cm2(85 PSI), 0.03 m3/min (1 CFM) |
| POWER REQUIREMENTS |
3 Phase, 208 to 230 V, 50 A, 15 kVA |
| |
|
|
|
